Cling Film RewinderWelcome to PPD Film Rewinder Machinery

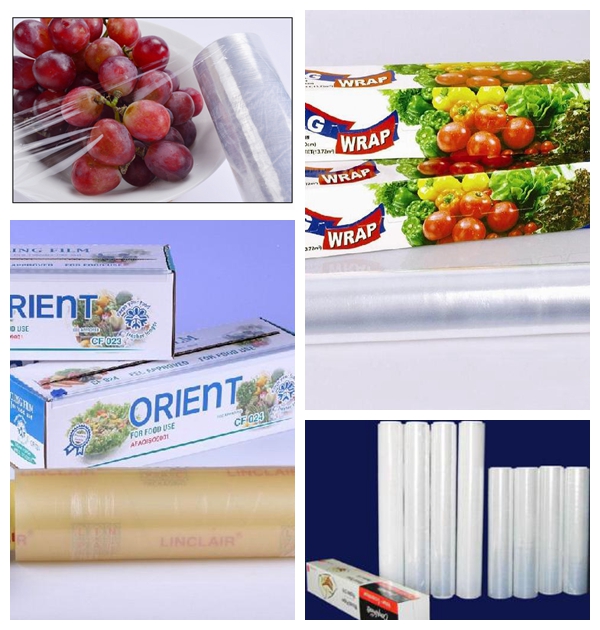

The new design fully auto 5 shaft cling film rewinder with perforation line is suitable for food film, such as PVC cling film, PE cling film, PE food stretch film.

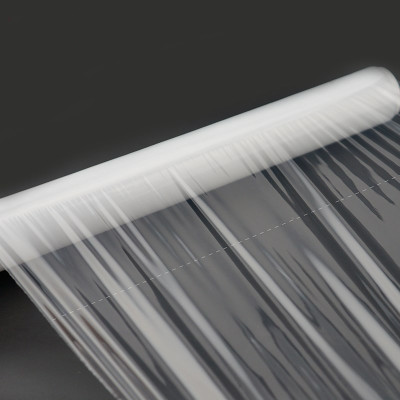

The final product roll has an easy tear perforation line.
It is an upgraded model than the automatic single shaft model, it has basic auto loading, 5 shafts automatically exchange for rewinding, the speed is double than other machine.

Features:
1. The operating control system is by LCD touch screen consisting of ''PLC+ transducer+ signal switch''.
2. Engine performance is very stable and reliable.
3. Five shaft rewinding, high production efficiency;
4. Automatic stop when the paper tube hopper is out of paper, which is easy to use.

Main Technical Parameters:

Model:PPD-5SPR300

Mother roll width :300mm

Mother roll inner core :3’’

Mother roll outer diameter :Max 500mm

Finished roll width :300mm

Finished roll core :35/38/40mm option

Finished roll length :5-100m

Voltage:220/380/415/450v,1&3 ph

Power :4.37kw

Speed :Max 650m/min

Packing size:1550*1490*1710mm

Weight :800KG
