Paper Core Cutting MachineWelcome to PPD Film Rewinder Machinery

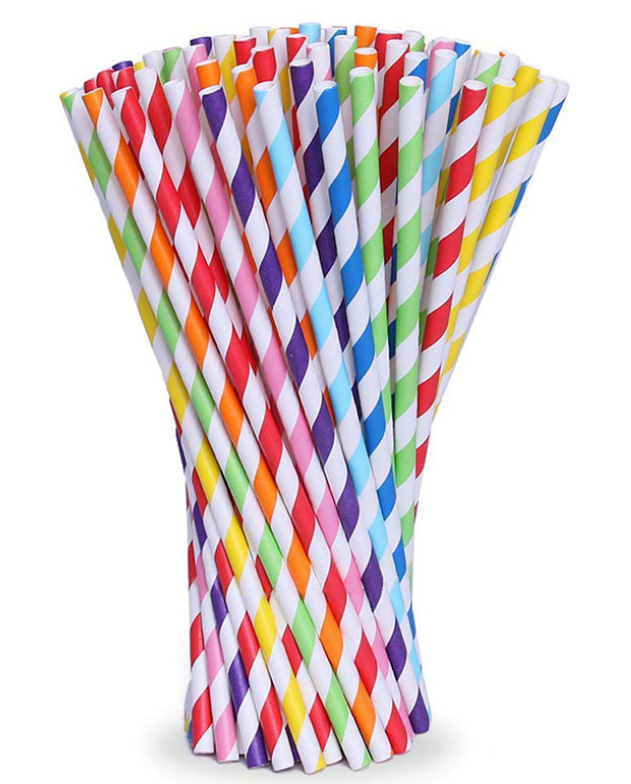

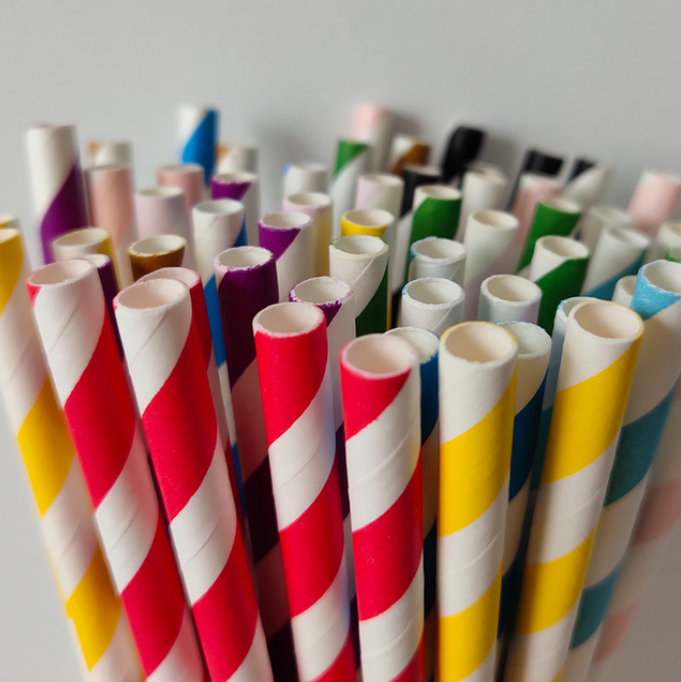

The paper straw machine is used for making paper straw.


Features:
1. The machine has an automatic paper changing system, 2 air cylinders to finish paper changing.
2. The machine is covered with a stainless body.
3. The machine includes a protective cover and a dry machine, the dry machine will dry the paper straw and make it more solid.
4. The machine has 5 servo motors to adjust the paper feeding speed, uniform mold and roller speed to make the machine more accurate and fast.

Main Data:

Name:Paper Straw Machine

Model:PPD-PSM70

Paper layer:3-4layers

Inner diameter of paper straw :6-12mm

Wall thickness of paper straw:0.07-0.15mm

Cutting Length :120mm-1600mm

Stable speed:60-70 m/min

Cutting model:Ten Blade 10刀

Cutting system:Servo motor synchronous tracking, multi knife online cutting

Gluing type :Single and double side

workers:1-2 persons 1-2人

Voltage :380V 3phase 50Hz

Air requirement :0.5-0.8mpa

Consumption :≥0.2m³/min

Total power:13 kw

Machine weight:1600 kg

Working area:4000*8500mm
