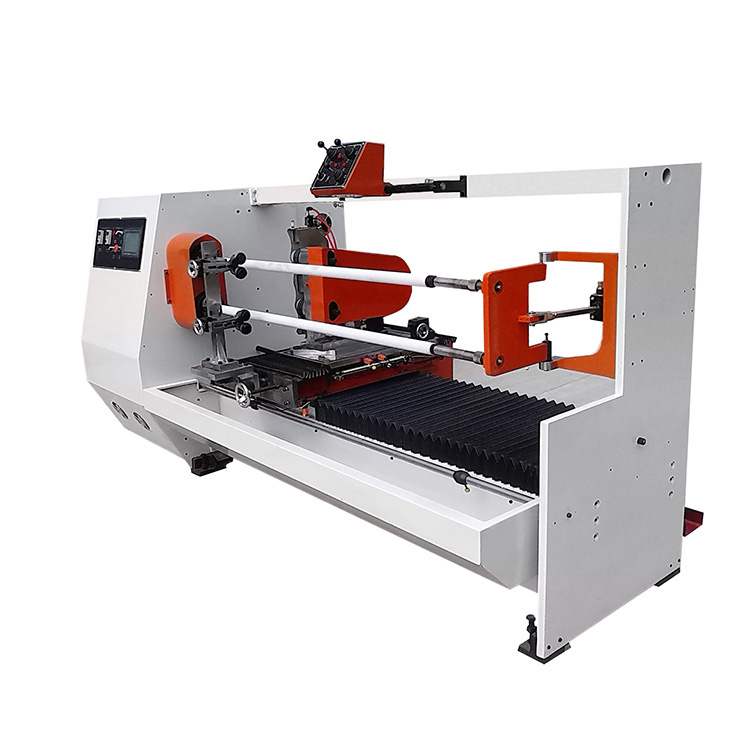

Automatic masking tape cutting machine is suitable to cut all kinds of tapes,like PVC tape、PE tape、PET tape、masking tape、double-sided tape、kraft tape、foam tape、cloth tape、ndustrial tape etc.

Features:
1.High strength shaft, wear resistance, compression resistance, can be effective for long-term completion of cutting
2.Efficient PLC human-computer interaction control system and servo motor control, make the operation more simple.
3.Double shaft double knife cutting,improve the production efficiency a lot.

Main Data:

Name:Automatic Masking Tape Cutting Machine

Model:PPD-MTCM1300

Core diameter:38mm or as customized size

Cutting speed:max35 cuts/min

Mini cutting width:2mm

Max cutting width:1300mm

Max cutting roll diameter:180mm

Cutting sleeve180mm circular blade

Cutting blade diameter:150mm

Blade drive motor:3HP*4P

Main motor:750W

Power:380V,50hz,3ph
