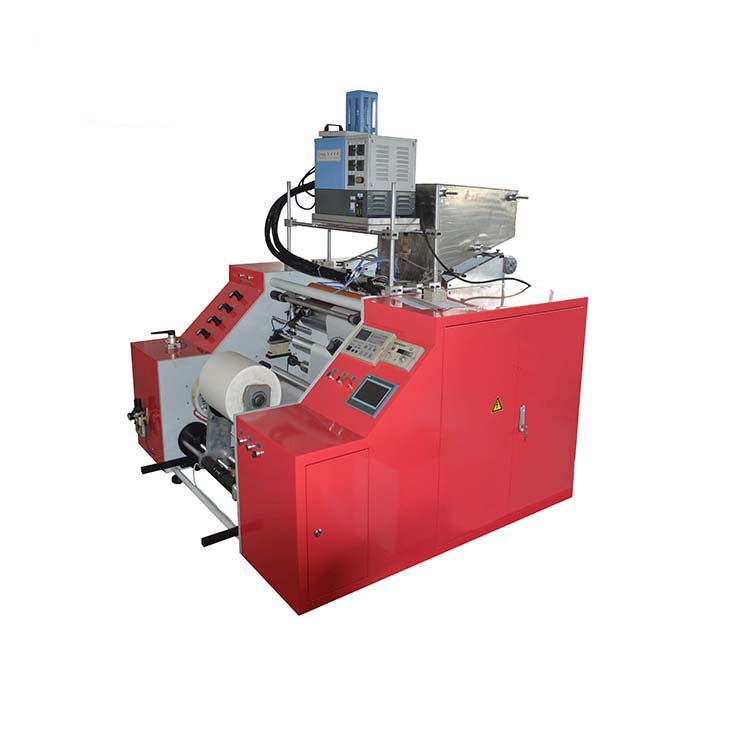

Food Paper RewinderWelcome to PPD Film Rewinder Machinery

Machine is designed for the rapid rewinding of food paper from longer length jumbo roll into shorter length small roll.
Machine adopts six station rewinding shaft, automatic exchanging, automatic gluing,PLC, touch screen control and program,good efficiency.
Both aluminium foil and food paper can be supported on the machine.

Features：

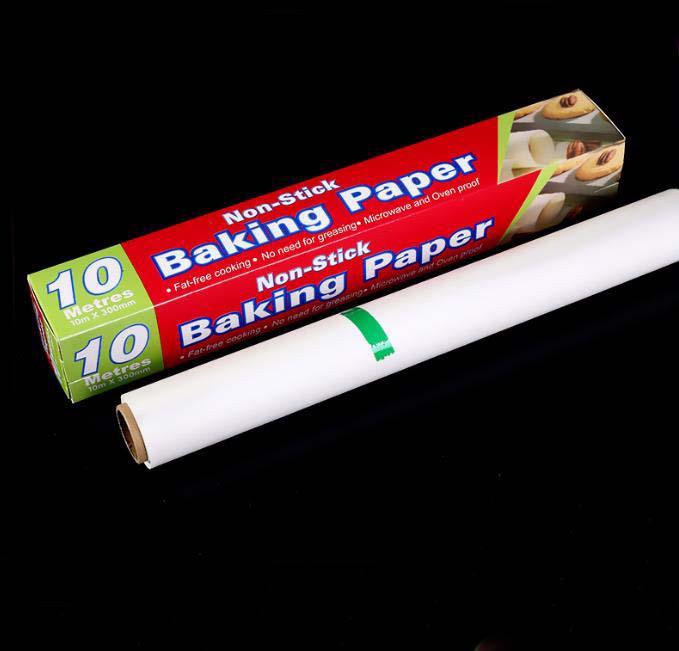

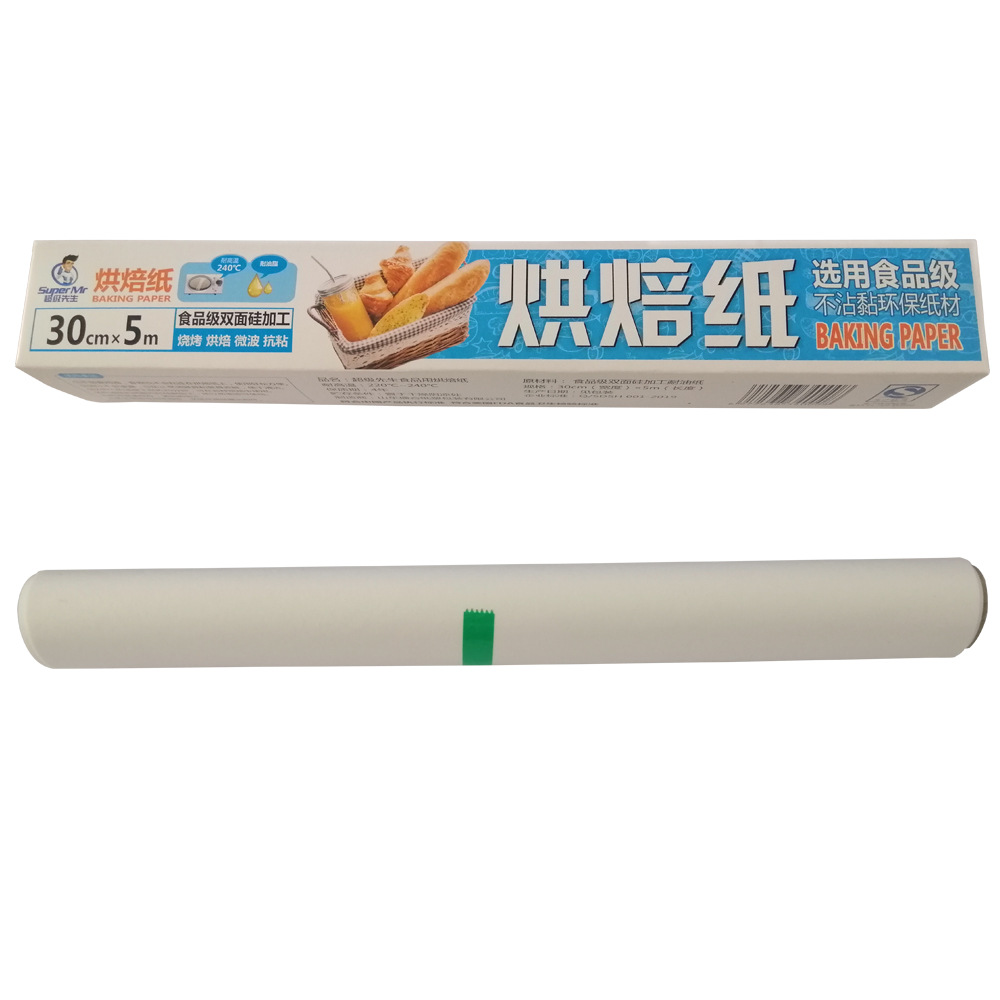

1.Suitable material:silicon paper,baking paper,wax paper,food parchment paper,butter paper,bakery paper etc.
2. PLC + human-machine interface + frequency converter control system, easy to operate;
3. Air shaft + magnetic powder tension control can ensure the smooth appearance of the finished product;
4. Automatic cutting and automatic turning to improve the degree of automation.

Main Data:

Name:6 Shaft Fully Auto  Baking Paper Silicon Paper Rewinder With Auto Label Sticker

Model:PPD-6SBPL300

Material:Baking paper,Silicon paper

Unwind roll width:300mm

Unwind roll ID:76mm

Unwind roll OD:Max600mm

Rewind roll width:300mm

Rewind roll paper core diameter:30/35/38mm or as customized

Rewind roll length:Max150m

Machine speed:3rolls/min（50m）

Total power:3kw

Voltage:220/380/415V option

Air supply:0.3Mpa
