Cling Film RewinderWelcome to PPD Film Rewinder Machinery

The cling film slitter rewinder is specially designed for rewinding and slitting of cling film, stretch film, LLDPE film, LDPE film etc.
Machine assigned electrical and pneumatic brand, auto meter counting, control is simple, easy to operate.

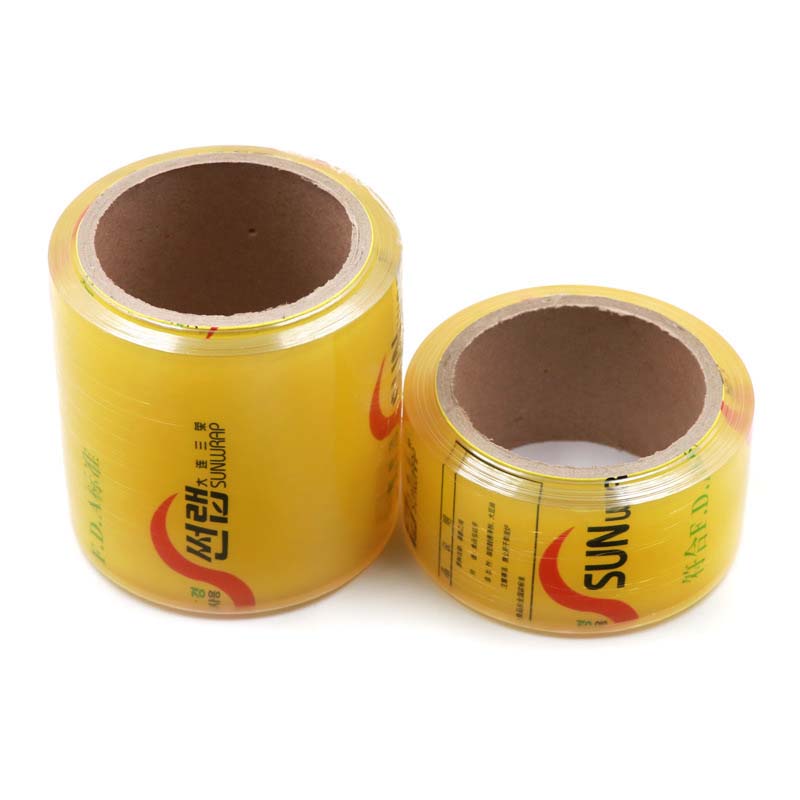

The final product rolls can have 1/1.5/2/3 inch inner diameter paper cores as per individual customer requirement.

Main Data:

Name:Cling Film Slitter Rewinder

Model:PPD-CFS500

Paper core loading mode:By Manual

Max diameter of parent roll:400 mm

Max width of parent roll:500 mm

Inner diameter of parent roll:3inch

Stretch film cutting mode:By Knife

Width of sub-roll:50 mm-500 mm

Inner diameter of sub-roll:1/1.5/2/3 inch

Max diameter of sub-roll:400 mm

Designed linear speed:600 m/min

Main motor power:1.5 KW

Power supply:220/440/415/380 V, 50/60 hz, 3 pha

Machine dimensions (L×W×H):1350*1150*1300mm

NOTE:Different sizes can be customized.
