Paper Core Cutting MachineWelcome to PPD Film Rewinder Machinery

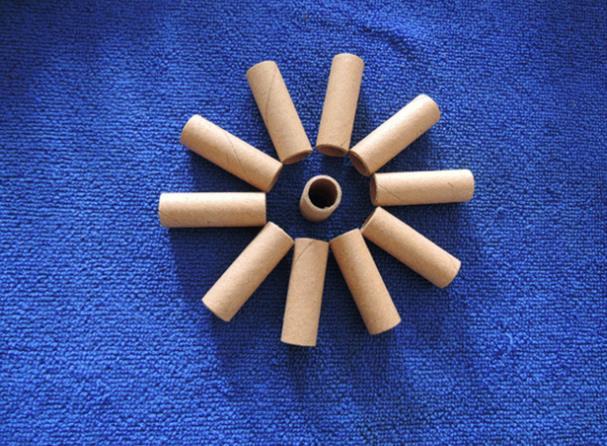

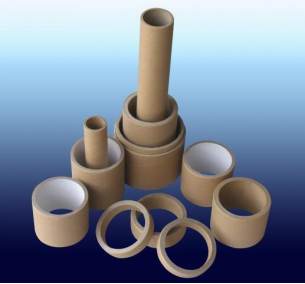

The automatic paper core making machine is used to produce a series of paper core, including fireworks tube, cloth core roll, aluminum foil roll paper core, cotton core, fax paper core, plastic film paper core, toilet paper core and so on. .
The machine uses the imported PLC logic control system and single electricity control box, the speed of the mainframe is adjusted by the transducer which can save 30% electricity than the common electromagnetic.
It is an idea machine with high precision pneumatic cutting head, the use of impoted blade to cut fast can return quickly, because of the return-alleviator cutting station. And it can adjust the cutting location precisely, improve the cutting smooth and beautiful.

Technical Parameter:

Name:Automatic paper core making machine

Model:PPD-325

Max paper core diameter:100mm

Min paper core diameter:10mm

Max paper core thickness:5mm

Min paper core thicknedd:1mm

Cutting way:single round knife cutting

Production speed:3-20m/min

Voltage:380V,3ph

Machine size: 2600*1600*1500mm(L*W*H)

Weight:1000kg
