Thermal Paper Roll Slitter RewinderWelcome to PPD Film Rewinder Machinery

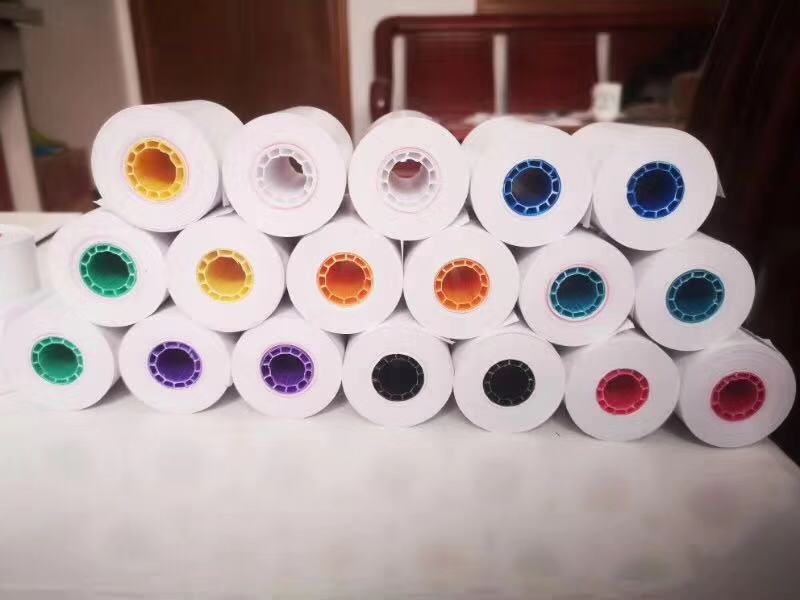

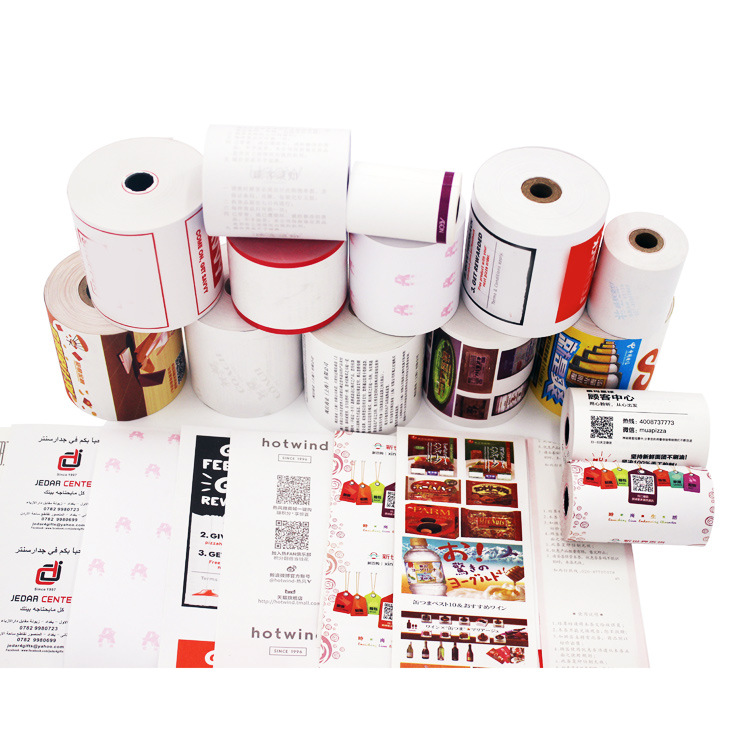

The small paper roll slitter rewinder is suitable for slitting rewinding various specifications of thermal paper, fax paper, cash register paper, computer bill, lottery paper, medical record paper, POS printing paper and ATM roll paper.
It uses PLC control, man-machine interface operation, frequency conversion speed regulation, automatic tension control, and three-roller containment surface winding method. It is also equipped with a pneumatic paper insertion device, and may be equipped with a color marking device.
The machine has the characteristics of beautiful appearance, compact structure, tight and flat winding, high degree of automation, and convenient operation.
It is the ideal equipment for slitting and winding domestic small paper core rolls.

Features:
1. The machine is controlled by Siemens touch screen, all data is set on the touch screen, the machine will work automatically
2. The hydraulic automatic feeding method is adopted, and the oil cylinder is controlled by the oil hydraulic station.
3. All drive shafts are dynamically balanced
4. Equipped with a warning sign device to mark the product marking line
5. The machine uses a round knife for slitting and is equipped with an automatic waste edge discharge device
6. The machine has the function of automatically inserting paper and adjusting the tightness of the winding material
7. The machine has the automatic counting meter function, which can accurately complete the value set by the customer

Technical Data：

Name:Small Paper Roll Slitter Rewinder

Model:PPD-Y900

Mother roll width:900mm

Mother roll inner diameter:3inch air shaft

Mother roll outer diameter:1000mm

Finished roll inner core diameter:12.7/15/18mm etc

Finished roll outer diameter:max180mm

Slit roll outer diameter:max 180mm or customized

Maximum mechanical speed:150m/min

Voltage:380V,50hz,3ph

NOTE:Different sizes can be customized.
