Slitting & Rewinding MachineWelcome to PPD Film Rewinder Machinery

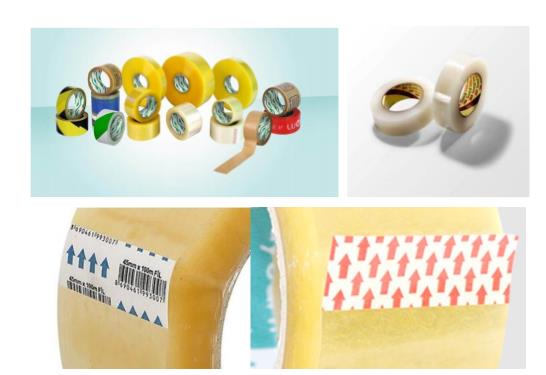

The bopp tape slitter with auto label sticker is suitable for cutting bopp tape, stationary tape, glass paper tape, cellophone tape, opp tape, masking tape etc. The whole machine set includes: 1 set of bopp tape slitter, 1 set of
paper core cutting machine, 1 set of paper core loading machine, 1 set of mini rewinding machine and 1 set of mold.

Features:
1) Full-automatic four-shaft exchange.
2) PLC control system with touch screen operation.
3) Automatic labeling
4) Automatic loading of jumbo rolls. Loading and Unloading jumbo rolls is easy and convenient.
5) MAX Rewind diameter: 300MM (Four Shaft Automatic exchange)
6) Machine Speed: max180m/min

Main Data:

Name:Bopp Tape Slitter With Auto Label Sticker

Model:PPD-BOPP1600L

Jumbo roll width :max1600mm

Jumbo roll outer diameter :max800mm

Rewind roll outer diameter :max180mm

Slitting width :12-1600mm

Rewind roll paper core :3inch

Machine speed:max180m/min

Power :380 50Hz 3Phase

Air compressor (customer prepare) :5KG

Machine packing size:3210*2185*1900mm，1885*1730*1810mm

Weight:1800kgs
