Stretch Film RewinderWelcome to PPD Film Rewinder Machinery

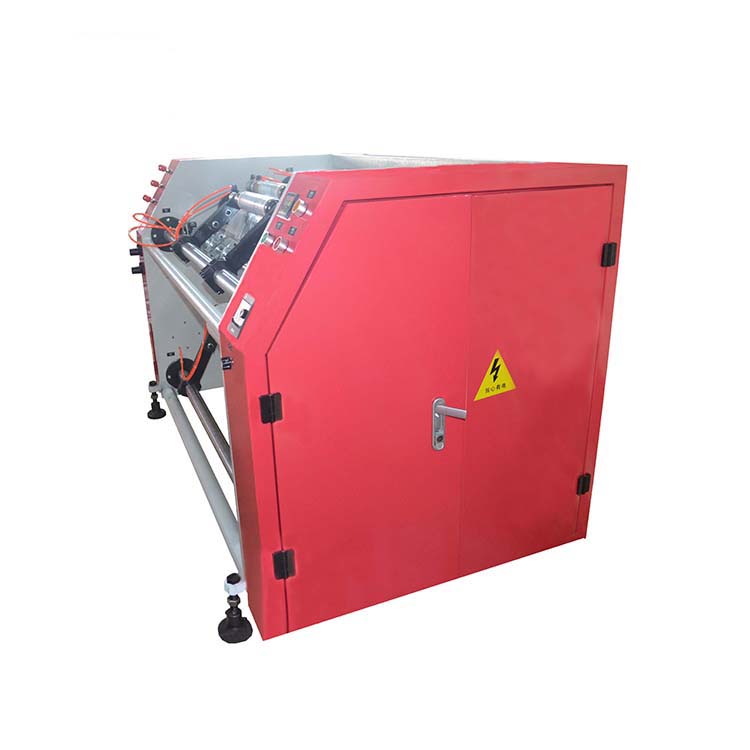

1350mm 2 shaft stretch film rewinder slitter is a customized model for big width 1350mm,it is designed with 2 shaft for user friendly,machine speed control is by inverter,the length control is by premium counting system.
It can work as stretch film slitter,and it can be value added to work as dual-shaft exchange semi auto stretch film rewinder once the knife is moved up.
With simple design and user friendly,the machine can be operated by non-experience worker.


Features:
1.The diameter of the reel paper tube is 38/50/76mm, which can be freely switched.
2.This machine has convenient and flexible adjustment, low noise, variable frequency speed regulation, new dual station roll changing, automatic winding counter, and is currently an ideal rewinding and slitting equipment with high cost-effectiveness.

Technical Data:

Name:1350mm 2 Shaft Stretch Film Rewinder Slitter

Model:PPD-SFSR1350

Material width of unwinder roll:Max1350mm

Weight of unwinder roll:Max100kg

Outer diameter of unwinder roll:Max300mm

Rewinder roll width:290-450mm

Rewind roll ID:38/50/76mm

Finished roll OD:Max180mm

Speed:max 600rpm/min

Power:1.7kw

Voltage:220/380/415V option

Air supply:0.2Mpa
