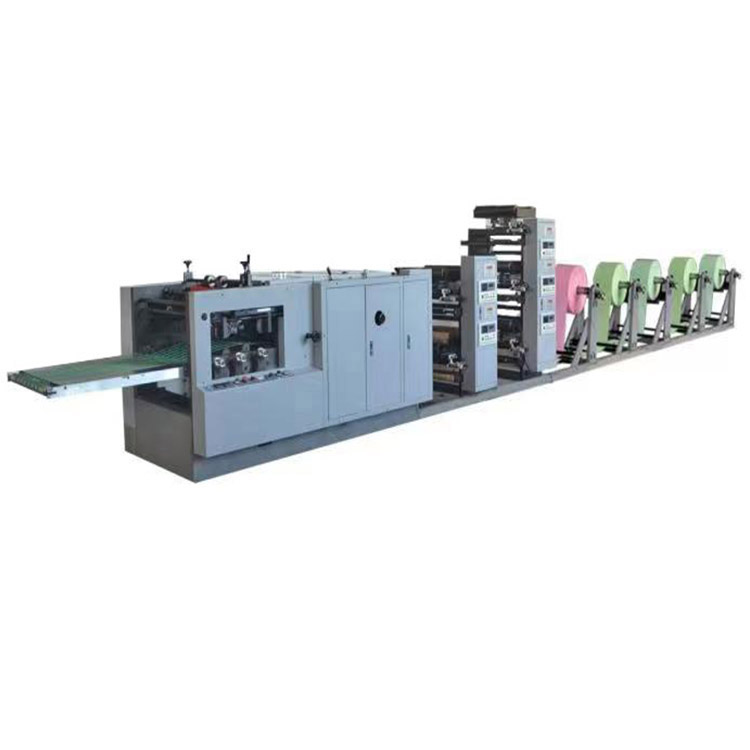

Blank continuous computer form processor(7 ply paper) adopts cast iron wall panels, heavy-duty machine structure, stable transmission with low noise, strong overall integrity and high stability of each layer of paper supply rack.
Each unit is equipped with an infrared automatic deviation correction and automatic tension system, which is easy to operate, runs more smoothly, has high punching accuracy, neat paper edges, accurate paper length, reduces waste, and improves efficiency.

I. Main parameters:

Name:Blank Continuous Computer Form Processor(7 Ply Paper)

Model:PPD-7PLY150

Maximum paper roll width:500mm

Maximum paper feeding width:482mm

Maximum unwinding diameter:1000mm

 Paper weight:40-120g/㎡

Fold length:11 inches

Mechanical speed:5-150m/min

Power supply:380V/50HZ/2.2KW

Paper tube inner diameter:76mm (3 inches)

Magnetic powder:5KG

II. Main configuration:

1) Each layer of paper supply shaft is equipped with an air expansion shaft, 1 piece/layer

2) Configure infrared automatic correction system for each layer of deviation correction

3) Automatic tension control system for each layer of tension

4) Perforated disc 22 inch high-precision

5) Bottom drum 22 inches

6) 1 set of horizontal cable tie device (11 inches)

7) Thread pressing knife device, longitudinal folding knife device (4 point lines, 1 slitting)

8) 1 set of claw nails and fine adjustment device

9) 1 set of marking device

10) 1 set of fast paper output adjustment device

11) Paper Scrap Function Brush to Remove Paper Scrap

12) High precision grinding gear and Timing belt wheel of main transmission part

13) 1 set of paper conveyor belt

14)The accessories box contains: 100 punch mould, 300 punch needle, 10 horizontal line knives and other standard tools.
