Stretch Film RewinderWelcome to PPD Film Rewinder Machinery

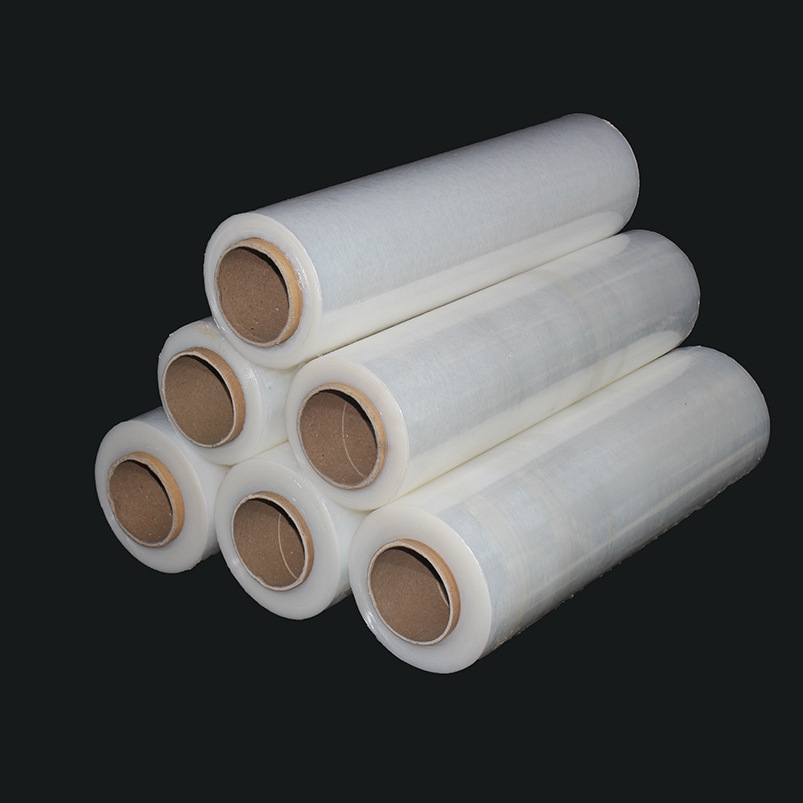

Fully auto stretch film rewinding machine is the most popular model for serving the stretch film converting factory, it rewinds the jumbo roll of stretch film into small machine roll and hand roll.
Patsons engineers continue to develop the functionality of the machine, the features of the machine are very user friendly.
Through the PLC programer with LCD screen, the user only needs to enter the setting length on the screen page, the machine will automatically rewind the roll, then automatically change the paper tube to the next production continuously, no need for adding a paper tube by hand.
With a sensor system built into the machine, it will automatically stop when the paper tube storage is finished, and the machine will stop when the mother roll is finished.
The finished roll will train on the side of the machine through the automatic convery system, the operator can pack the finished roll in front of the machine.
In this way, one operator can operate 3 to 4 machines simultaneously. Non-skilled machine operator required.
The design speed of the machine at 900 meters per minute, this is very high speed.
The machine is multi-functional for both PE stretch film, food stretch wrap, and PVC food cling film made by extrusion machine or blown machine.

Main Technical Features:

Name:Fully Auto Stretch Film Rewinding Machine

Model:PPD-ARW500

Material:PE stretch,PVC cling film

Unwinding roll width:maximum 500mm

Unwinding roll total web width:520mm

Unwinding roll inner tube diameter:76mm

Unwinding roll outer diameter:maximum 500mm

Finish roll total width:520mm

Finish roll inner tube diameter :25/38/50/76mm etc

Finished roll outer diameter:180mm

Design speed:900m/minute

Total power:4kw

Voltage:220/380/415/440v,3phase

Air supply:0.3Mpa
