Aluminium Foil MachineWelcome to PPD Film Rewinder Machinery

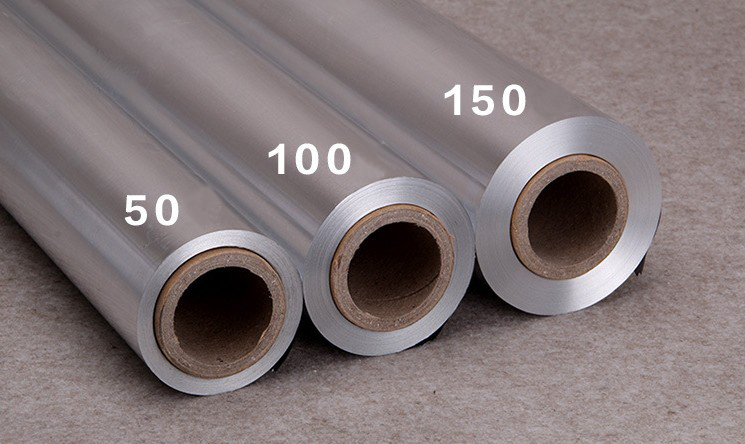

Semi auto aluminum foil rewinding machine is one of the top seller model for rewinding jumbo roll of aluminum foil into small house roll, catering roll, kitchen foil roll etc, the setting length is every flexible from 2meter to 600meter etc. It is controlled by PLC unit, the speed is by
inverter. Through touch screen operation, the user only needs to enter the length setting, It has Chinese-English interchange for display.
The tension control is in the automatic device, The break system uses magnetic power is at 50NM, to ensure that the jumbo roll is stable break control. With additional requirements, the machine can work for cling film rewinding as a 2 in 1 model. With 2 shaft automatic change, it is very good at work, less labor involved.
The machine is for automatic start of rewinding, automatic stop when the setting length is reached, automatic exchange of paper core shaft etc.

Main Data:

Name:Semi Auto Aluminium Foil Rewinding Machine

Model:PPD-SAAF600

Unwind roll width:300/450/600mm

Unwind roll core diameter:3/6inch

Unwind roll OD:600mm max

Finished product width:max 600mm

Finished product core diameter:32/35/38/40mm

Finished product length setting:2-600meter

Speed:150/min max

Voltage:220/380/415V,50Hz

Total power:2.2kw
