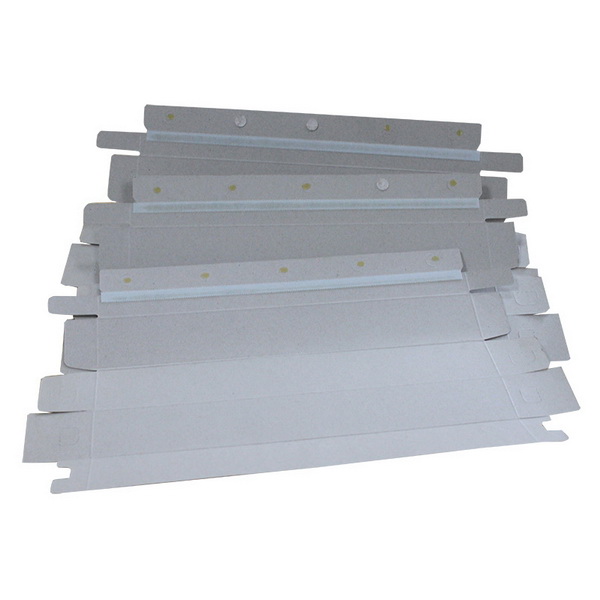

The automatic aluminum foil carton box plastic blade attaching machine is specially designed for attaching the plastic blade to the carton box of the aluminum foil roll. gives a very precise spray of glue.
all processes are automtic, There are sensors throughout the machine, it will be Automatic counting, alarming system, will provide very stable production, high efficiency to reduce less labor involved.

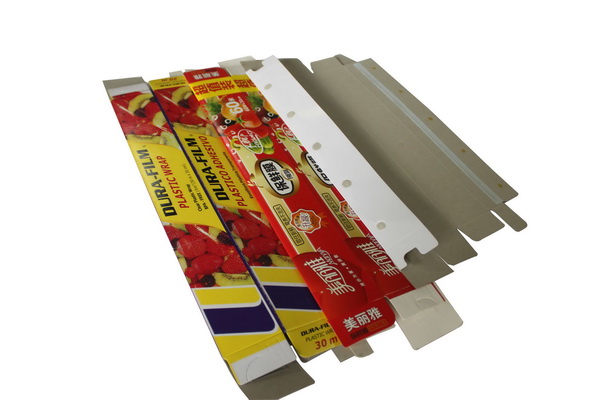

It is ideal for blade attaching for cardboard box cling wrap roll, aluminum foil roll, baking paper roll, food waxing paper roll etc.

Main Specifications:

Model：PPD-PBFM35D

Dimensions：4000x1000x1550mm LWH

Total power：AC220V/3.2KW/ 50HZ

Air supply：0.45-0.8Mpa

Glue type：Hot melt glue

Gluing method:Glue spraying type

Glue cylinder capacity： 5KG/h

Carton box specifications：220(L)*460(W)mm (unfolded size)

Carton box specifications：460(L)*240(W)mm (unfolded size)

Production speed：30-35pcs /min

Plastic blade mounting accuracy：Horizontal: ±0.3mm; longitudinal: ±:1.2mm

NOTE: Different needs are welcome for a customized model.
