Aluminium Foil MachineWelcome to PPD Film Rewinder Machinery

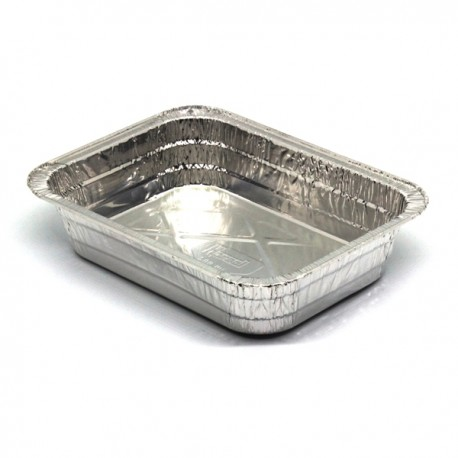

Aluminum foil container production line includes: Feeding Machine, high precision press, product collecting table (Mould for optional).

I: Feeding Machine：
(1) Steel body, high hardness, and stability.
(2) High precision feeding of NC servo: Aiming at the advent of hi-tech industry, it is controlled
by computer closed-circuit feedback system. To maintain accuracy within +/-
0.03mm.
(3) It can be suitable for different length of feeding. Feeding length setting: Enter the feed length directly on the
controller panel. That it can satisfy the processing and production of special products
(4)The surface hardness HRC is 60 and hard chrome plated which can ensure high performance
for its long-term use.
(5) It is widely used for metal material before punching, punching, cutting, and straightening
(6) It is suitable to be used for material with different widths below the maximum width that it can do.



Main data：

Feeding type NC control with servo motor

Max. material roll diameter 700 mm

Max. material roll width 600 mm

Feeding speed 20 m/min

Feeding length 30-2000 mm Feeding

tolerance ±0.1 mm

Servo motor power 2.75 KW

Weight 300 KG

Total size 2000*900*1300 mm

II:High Accuracy Press:

Max. material roll diameter 700 mm

Max. material roll width 600 mm

Feeding speed 20 m/min

Feeding length 30-2000 mm Feeding

tolerance ±0.1 mm

Servo motor power 2.75 KW

Weight 300 KG

Total size 2000*900*1300 mm
