Continuous Business Form MachineryWelcome to PPD Film Rewinder Machinery

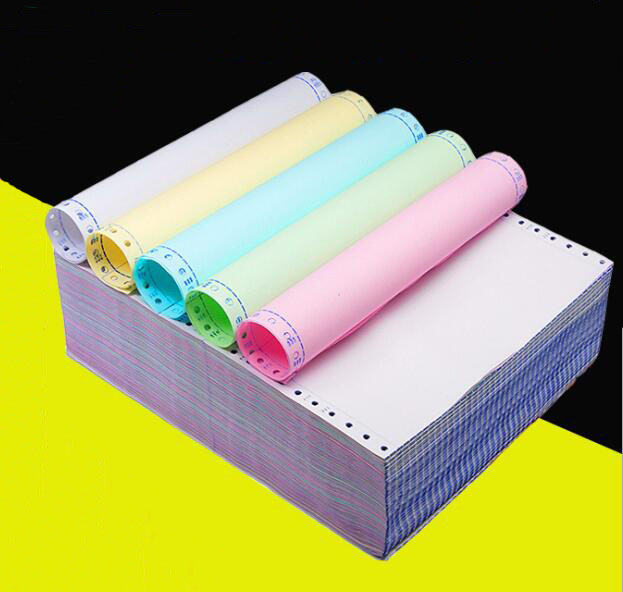

Blank business form processor is perfect for making blank computer form, business form, continuous form, NCR form roll as product.

Performance and Features:
1. With the functions of paper stacking, punching, creasing and punching and folding, etc., this machine can produce multi-layer computer paper by using dual-row stacking pallets of paper, punching sprocket and slitting knife.
2. It can work as multi layer and single ply of computer form processor to join numbering collator, Pack to pack printing machine as Continuous form production line.
3. The color marking and the length of the color marking on the paper are adjustable.
4. The data can be pre-set, it will alarm when it reaches the set data.
5. Speed ​​regulation controlled by frequency conversion motor.
6. Cylinders for different paper sizes in creasing and punching (11 inch and 12 inch)
7. Different size gears for different paper gathering sizes.
8. Paper delivery pallet for paper in specific size.
9. Paper strip collecting system
10. Paper unwinding stands, 5 pcs strong to carry 150 kgs

Main Data:

Perforation and folding Machine specifications: 5ply-computer paper

1.  Reference Paper:35gsm-150gsm

2.  Max. Width of unwinding roll: 500mm

3.  Max. Diameter of unwinding roll: 1000mm

4.  Diameter of Paper Core: 76mm

5.  Folding length: 8-17inch

6.  Horizontal perforating line space:3-17inch

7.  Number of paper layer processing: 2-5ply

8.  space of sprocket hole：12.7mm

9.  Diameter of sprocket hole:4mm+/-0.1mm

10.Perforating cylinder: 11 inch and 12 inch)

11.Machine speed: 5-130m/min

12.Magnetic powder tension controller: adjustable.
