Aluminium Foil MachineWelcome to PPD Film Rewinder Machinery

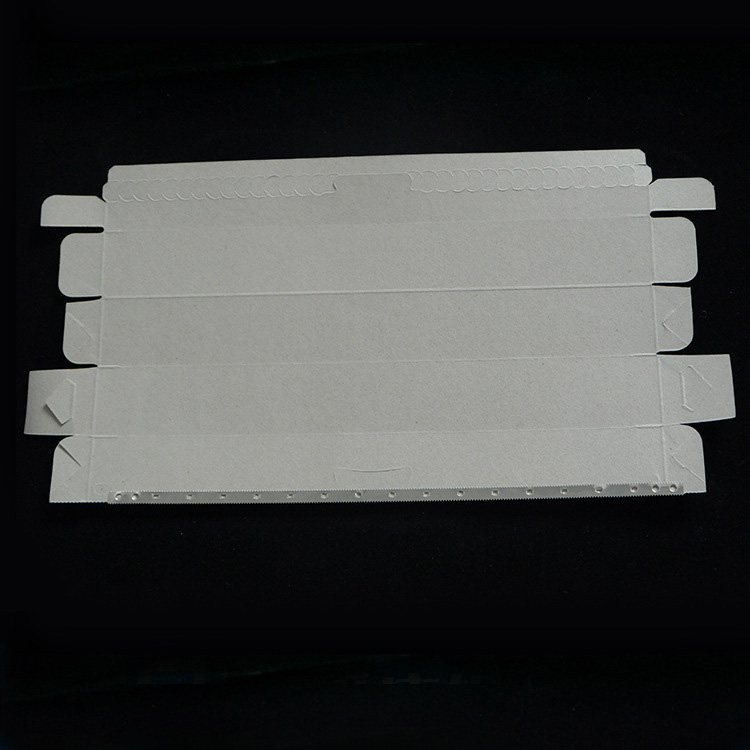

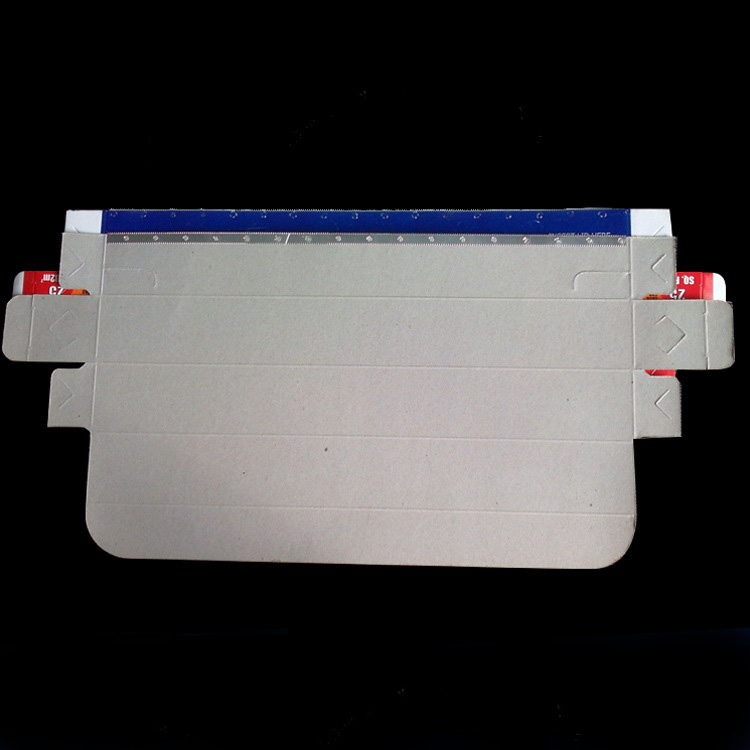

The metal blade fixing machine is mainly used for punching saw blades into aluminum foil cartons, cling film cartons etc.
With the mold, the machine can be used for blanking, punching, forming, deep drawing etc. which is widely used in various fields.

Features:
1. Electromagnet pedal (optional): Electromagnet pedal, practical and durable, high security, moving on all sides
2. Two-handed operating device: two-handed operating device, pedal and continuous transfer , high efficiency, easy to use
3. Safety fence (optional): There is a protective fence behind the fuselage to prevent splashing of material and protect personal safety.
4. Mechanical design: The mechanical design is strict, and the parts of each part have high practicality and long service life.
5. Automatic oil feeder (optional): Automatic oil delivery, simple and convenient.

Main Data:

Name:Metal blade fixing machine

Model:PPD-MBF400

Nominal pressure: 400KN

Slider stroke: 100mm

Slider strokes: 50 times / min

Maximum closed height: 300mm

Mouth depth: 215mm

Work surface size: 400*650mm

Mold hole size: 50*70mm

Motor power: 3kw

Weight: 2200kg

NOTE:Different sizes can be customized.
