Aluminium Foil MachineWelcome to PPD Film Rewinder Machinery

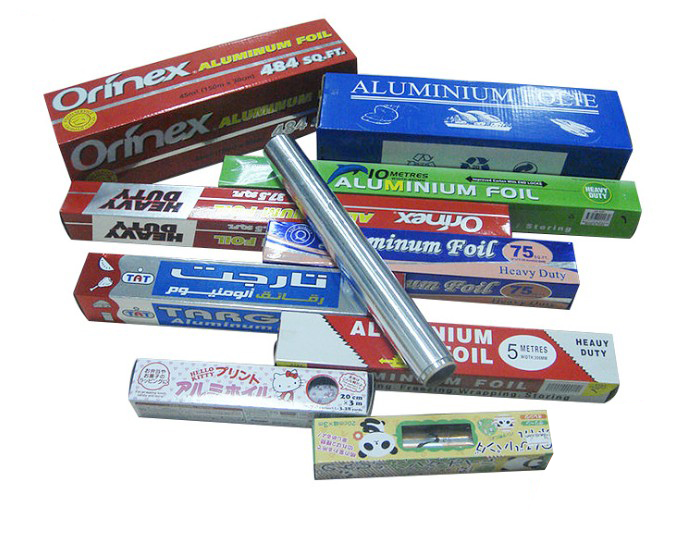

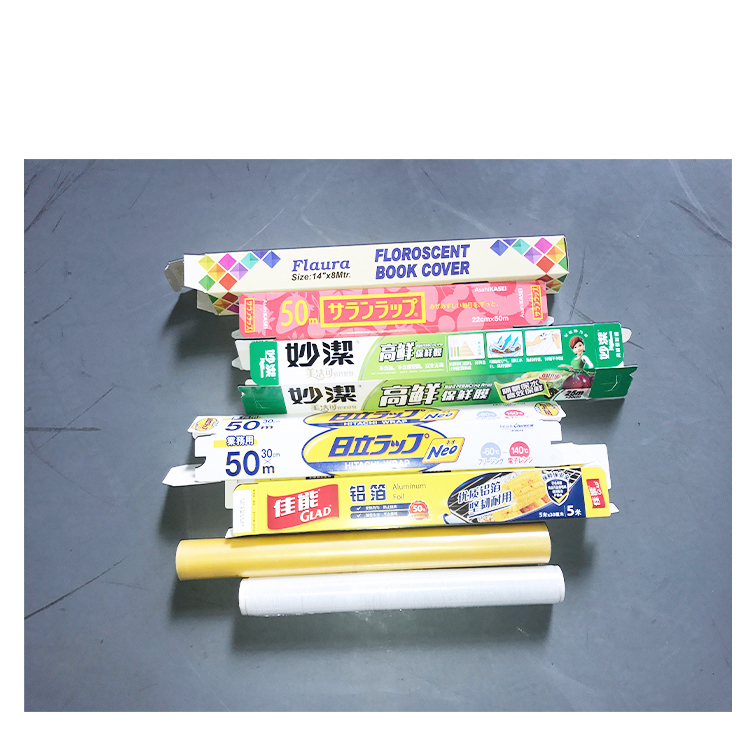

The fully automatic aluminum foil roll cartoning machine is mainly designed for the automatic cartoning and packing of aluminum foil rolls, food cling film rolls, silicon paper rolls, baking paper rolls etc. The machine automatically completes the
transfer of the carton, the carton is formed and opened, the items are boxed and sealed, and the carton is folded at both ends in the longitudinal direction.
It can be used alone or connected to the rewinding machine and other equipment to form a production line.

Features:
1. The machine works with PLC automatic control, frequency conversion speed regulation, the electrical components use world-renowned brands.
2. Automatic detection of misidentification of items, cartons, rejection and waiting functions.
3. Automatic display of machine failure, packing speed and number of finished product.
4. The pushing part is mechanical, with stable performance and high precision.

Main technical parameters

Name:Fully Automatic Aluminium Foil Roll Cartoning Machine

Model:PPD-AAFC300

Carton size: L:160 ～ 350× W: 35 ～ 100 × H:20 ～ 65 mm

Production capacity: 30-50 boxes / min

Compressed air: 0.6 ～ 0.8Mpa

Voltage:380V,3Ph,50Hz

Total power: 3.8kW

Machine dimension: L: 3750 × W:1600 × H:1600mm

Machine weight: about: 2000Kg

NOTE:Different sizes can be customized.
