Stretch Film RewinderWelcome to PPD Film Rewinder Machinery

The fully automatic pre stretch wrap film rewinder machine is a multi-functional machine, it can be made as a standard automatic stretch film rewinder machine and pre stretch film rewinder machine.
When the machine is used as a pre-stretch rewinding machine, the length of the film can be stretched to 1.5 to 2 times the original to save raw material.
The machine uses the PLC program and inverter control system, touch screen, automatic loading of the paper core, automatic stop when the machine reaches the setting length, high degree of automation and save labor cost.

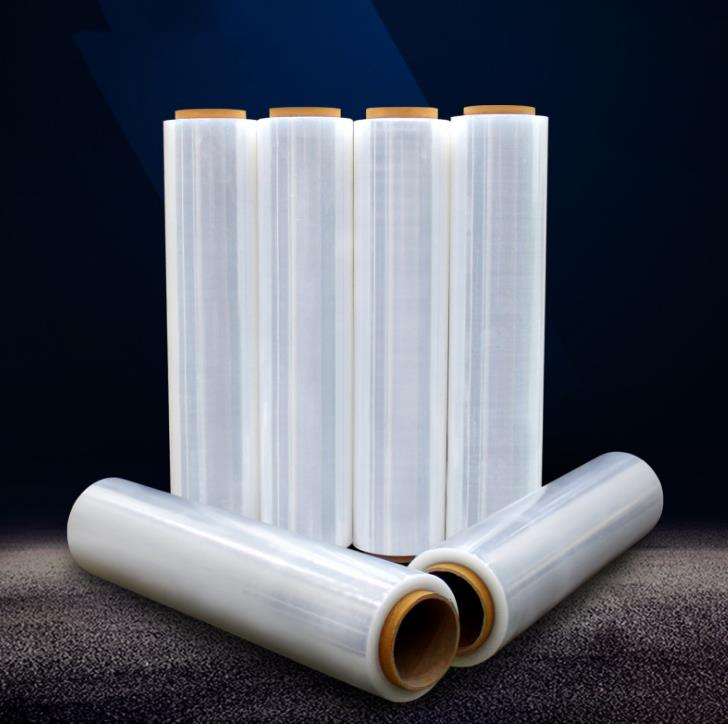

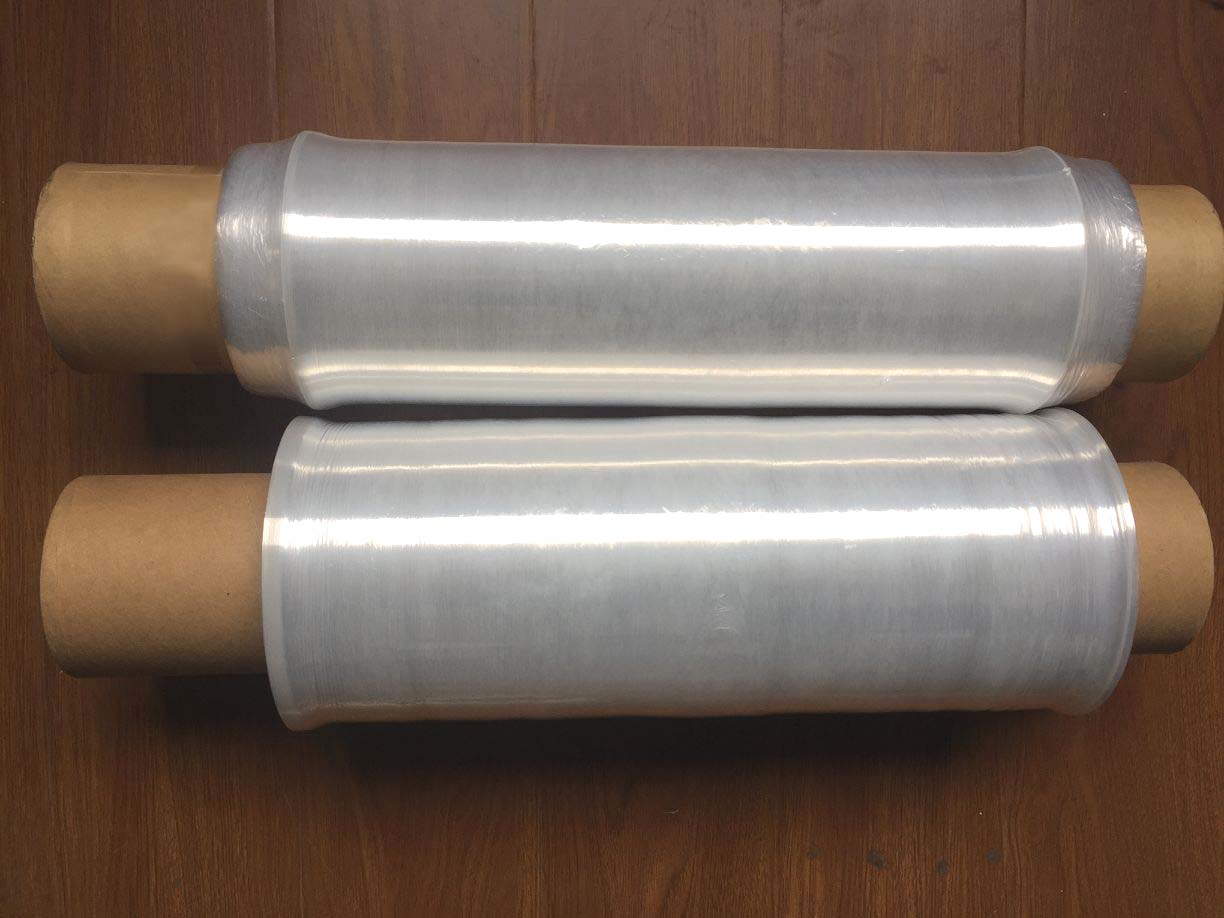

The machine is mainly used for stretch wrapping film, PE cling film, PVC cling film, industrial stretch film, food cling film etc.

Main Data:

Name:Fully  Automatic Pre Stretch Wrap Film Rewinder Machine

Model:PPD-APRW600

Parent roll width:max600mm

Parent roll inner diameter:3inch

Parent roll outer diameter:max475mm

Finished roll width:max600mm

Finished roll inner diameter:2/3inch

Finished roll outer diameter:max180mm

Pre stretch rewind speed:max650m/min

Standard stretch rewind speed:1000m/min

Voltage:220/380/415v 3PH

Power:4kw

Noted：Different sizes can be customized.
