Stretch Film RewinderWelcome to PPD Film Rewinder Machinery

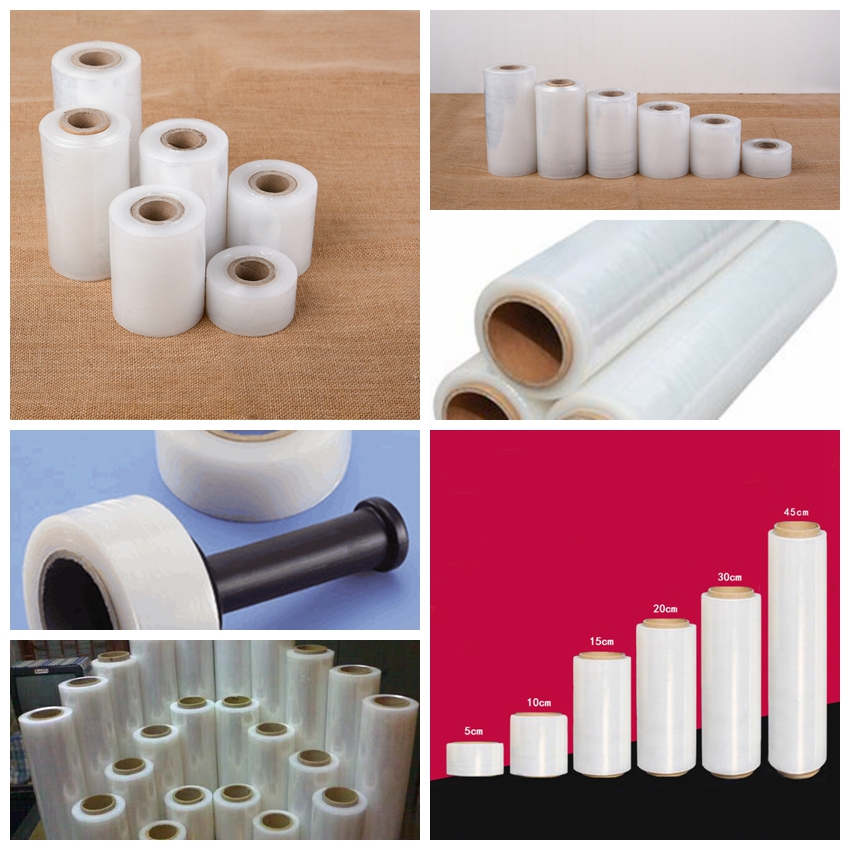

​2 Shaft semi auto stretch film slitting machine is suitable for rewinding and slitting PE stretch film, PVC cling film, pallet stretch film, protective film, and PVC wire film.

The machine is simple to operate, saves time and effort, reduces labor and greatly improves production efficiency.



Features:

1.Operation mode: The whole machine uses a man-machine interface, all parts of the machine are controlled, and the touch screen operation is centralized.

2.Length calculation: use an encoder to measure the speed and count the length.

3.Data display: The touch screen shows the production length, operation length, range length and production status.

4.Operation control: the whole machine motor frequency conversion stepless speed regulation.

Main Data:

Name:2 Shaft Semi Automatic Stretch Film Slitting Machine

Model:PPD-SFS1000

Mother roll width:1000mm

Diameter of mother roll: 450 mm

Mother roll core specification: 3inch

Finished product width: 20-1000mm option

Sub roll width 50-500mm

Diameter of sub-roll (max): 220mm

Sub-roll core specifications:1.5/2/3inch or as requests.

Machine line speed: 500 m/min

Motor power: 2.2kw

Voltage:220/380/415V option

NOTE:Different sizes can be customized.
