Thermal Paper Roll Slitter RewinderWelcome to PPD Film Rewinder Machinery

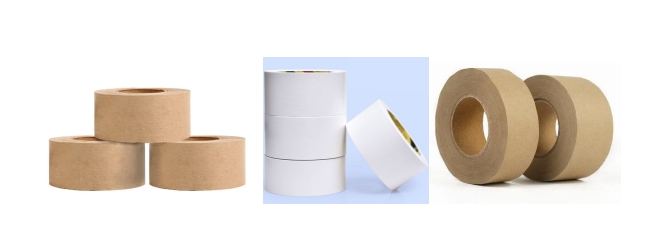

Craft paper blank paper slitter rewinder is ideal of cutting of craft paper,blank paper,paper-plastic composite paper,bopp film,PET film BOPP, PET, CPP, CPE, PVC film etc.
It adopts variable frequency speed regulation to maintain smooth operation during acceleration, automatically counts meters, and is easy to operate.

Features:
1. The rewinding adopts an air shaft structure, which is convenient for loading and unloading.
2.Two shaft slitting rewinding,more efficient.
3. The machine is equipped with 10 round knives.

Main Technical Data:

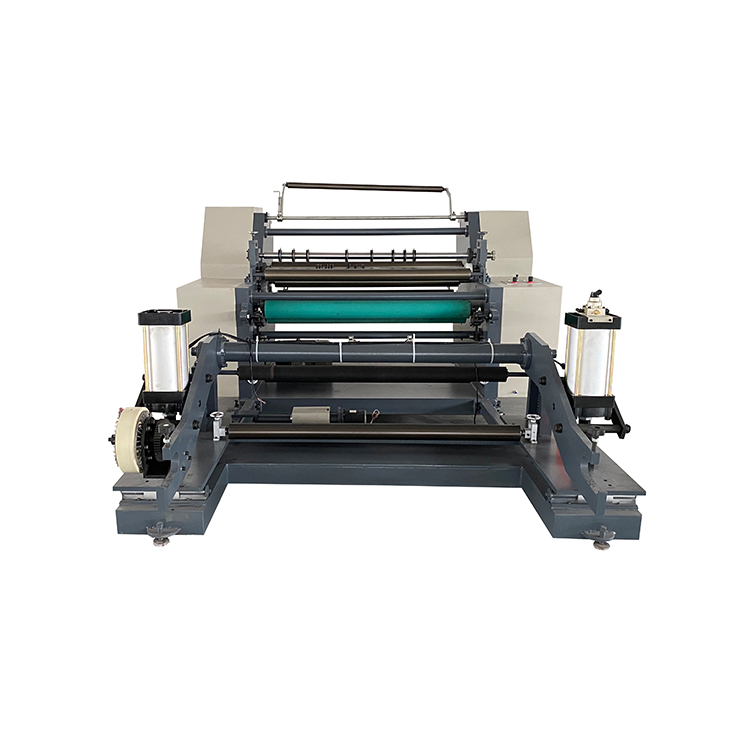

Name:Craft Paper Blank Paper Slitter Rewinder

Model:PPD-CPBPS1000

Material thickness:20-300gsm

Jumbo roll width:max1000mm

Jumbo roll ID:76mm

Jumbo roll OD:max1200mm

Rewinding roll OD:max600

Rewinding roll ID:76mm

Slitting Rewinding Width:50-1000mm

Speed:10-200m/min

Power:6.5kw

Voltage:220V/380V/415V option
