Pneumatic knife nonwoven fabrics roll slitting rewinding machine PPD-PNSR is a new series model for nonwoven fabrics slitting machine for the most advanced slitting knife installed, pneumatic knife.
This is the latest technology from Taiwan, through the pneumatic knife, the machine can cut for the flexible width of the finished roll, changing the width is very simple.
No bottom knife is required for this machine. The operator can save a lot of time by changing the bottom knife.
It is designed for single shaft rewinding for user friendly. The tension control is by automatic set.
With the high power of the magnetic power break clutch system, working together through the meter counting system, the rewinding roll length control is very accurate and precise in length setting.

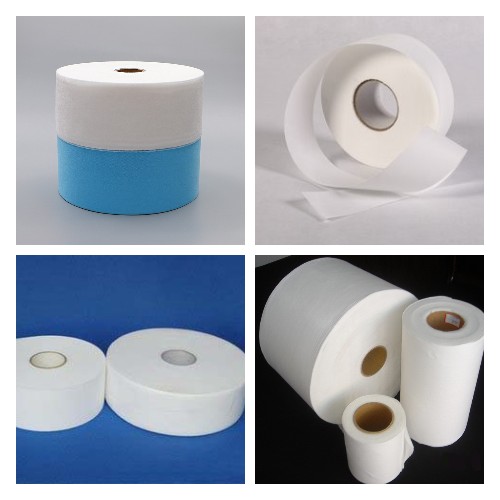

Different widths are available for different options, 800,1300,1600,2500mm etc, the machine works perfectly on spunlace nonwoven, viscose nonwoven, PP nonwoven, pet non woven etc.

Main Data:

Name: Pneumatic Knife Nonwoven Fabrics Roll Slitting Rewinding Machine

Model :PPD-PNSR1300

Material: non woven fabrics

Unwind roll width:1300mm

Unwind roll ID:76mm

Unwind roll OD:1200mm max

Finished roll width: 30mm to max unwinnd roll width

Finish roll ID:76mm

Finish roll OD: max00mm option

Design speed:max200m/minute

Total power:2.5kw

Voltage:220/380/415/450v

Required pneumatic:0.3Mpa

NOTE:Different width 1600/1800/2500mm can be customized.
