Food Paper RewinderWelcome to PPD Film Rewinder Machinery

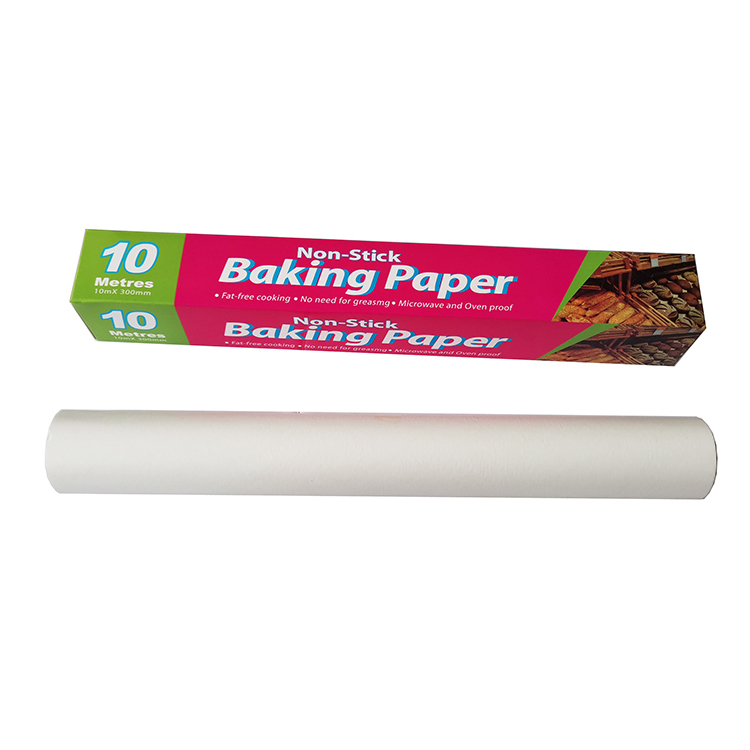

3 shaft food baking paper roll rewinding machine for semi auto model cost effective, user friendly production of food wax paper, food baking paper, silicon paper and house foil roll etc. It is an ideal model for high speed
rewinding at 300m/minute.
It contains Automatic paper core replacement when rewinding is finished, gluing is automatic, the unique design makes production at a very high rate in semi automatic rewinder models.

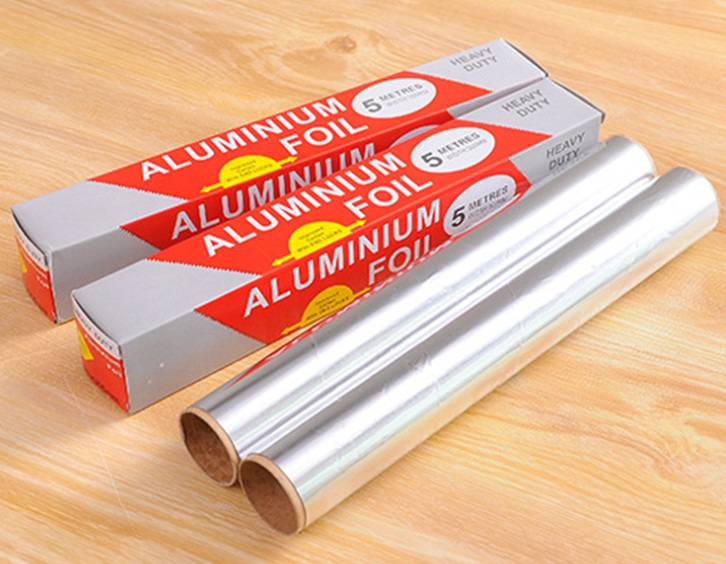

At the same time, it is multi-functional for the production of aluminum hosue foil roll as additional value added for 2 in 1.

Main Parameter Data:

Name:3 Shaft Food Baking Paper Roll Rewinding Machine

Model:PPD-3SPR450

Mother roll web width:max450mm

Mother roll ID:76/152mm option

Mother roll OD:600mm

Baby roll web width:max 450mm

Baby roll ID:25/35/38/40mm etc

Baby roll length:3-150mtrs

Design speed:300m /min max

Total Power:3kw

Air consumption:0.3Mpa

Magnetic powder break clutch:50.Nm

Voltage:220/240/380/415/450v

Frequency:50&60hz



Feedback Direct Send E-Mail

---

• Share on Facebook
• Tweet on Twitter

3 shaft food baking paper roll rewinding machine, food wax paper roll rewinding machine, food silicon paper roll rewinder machinery, food siliconized paper roll production machine
